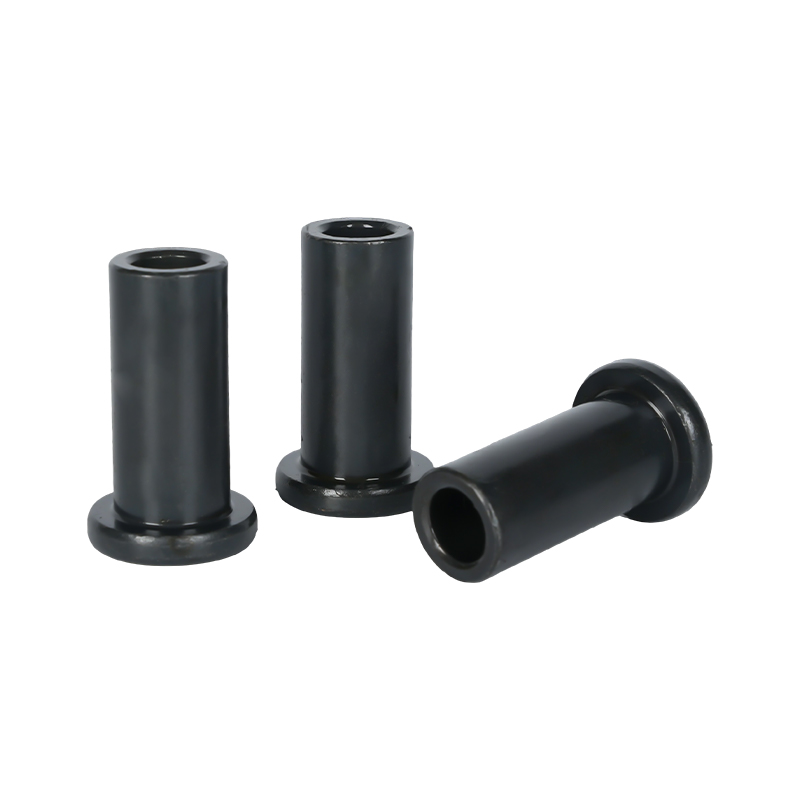

Black Flanged Step Internal Thread Sleeve For Suspension Arm Mounting

Core Features

Stepped Outer Diameter Configuration – Multiple diameter sections along the sleeve length support defined engagement with mating component interfaces. The stepped profile provides alignment and positioning functions for assemblies with varying bore diameters across stacked components, supporting proper bracket positioning and preventing misalignment during assembly .

Integrated Flange – A circular flange is formed at one end of the sleeve, serving as a positive stop to control insertion depth and providing a load-bearing surface that distributes clamping force across the workpiece .

Internal Threaded Bore – The central bore contains internal threads that accept bolts or mounting hardware for component attachment. The threaded portion engages with corresponding fasteners to secure suspension arm brackets in position .

Black Surface Treatment – The black finish provides a corrosion-resistant barrier layer with a uniform appearance, suitable for under-vehicle environmental exposure conditions.

Product Characteristics

The sleeve is manufactured with a stepped outer diameter profile, with each section dimensioned to engage specific mating components. The flange is formed at one end with specified diameter and thickness, providing a positive stop and bearing surface. The internal thread is produced with dimensions and tolerances following standard metric thread profiles.

Material composition is controlled to meet specified strength requirements. Carbon steel grades are available for general applications, with material selection affecting sleeve strength and load-bearing capacity. The black oxide finish is applied through a chemical conversion process, producing a consistent black surface with defined corrosion resistance properties.

The stepped configuration serves to prevent the bolt from moving relative to the mounting hole when external forces exceed the frictional force at the threaded portion, helping maintain suspension alignment under load . The flange integrates with the workpiece to provide consistent positioning during assembly.

Application Scenarios

Suspension Arm Mounting – Applied in vehicle suspension systems where sleeves provide alignment and positioning between suspension arm brackets and frame mounting points. The stepped configuration supports consistent bracket positioning and prevents misalignment .

Automotive Assembly – Used in lower arm bracket mounting applications where internal threads accommodate bolts for securing suspension components to vehicle body members .

Frame and Structural Assembly – Employed in equipment frames where stepped sleeves provide defined engagement with multiple component bore diameters and the flange distributes load across structural members.

Heavy Equipment – Utilized in chassis and suspension components where alignment of mounting interfaces is required and where the black finish provides corrosion resistance for under-vehicle applications.

Customization Options

Specifications and configurations can be adjusted based on application requirements. Outer diameters at each step, flange diameter, internal thread size, and overall length are customizable according to application geometry. Material grades include carbon steel for general applications and stainless steel for corrosion-resistant requirements. Surface treatments are selectable according to environmental exposure conditions, including black oxide, zinc plating, and other finishes.

Frequently Asked Questions

Q: What is the purpose of the stepped configuration on this sleeve?
A: The stepped outer diameter provides alignment and positioning functions for assemblies with varying bore diameters across stacked components. Each step engages a specific component interface, supporting consistent assembly alignment and preventing misalignment during mounting .

Q: What is the purpose of the flange on this sleeve?
A: The flange serves as a positive stop during installation, controlling insertion depth and providing a load-bearing surface that distributes clamping force across the workpiece .

Q: How does the stepped sleeve help maintain suspension alignment?
A: The stepped configuration engages with the mounting hole and prevents the bolt from moving relative to the component when external forces exceed the frictional force at the threaded portion, helping maintain suspension alignment under load .

Q: Can these sleeves be supplied in non-standard dimensions?
A: Custom outer diameters, step configurations, flange diameters, and thread sizes can be manufactured upon request, subject to tooling availability and minimum order quantity requirements.

Q: What surface treatments are available?
A: Surface treatments include black oxide for carbon steel, zinc plating with various chromate finishes, and other options based on environmental exposure conditions.

Q: What is the recommended tightening torque for fasteners used with these sleeves?
A: Tightening torque values are determined by the internal thread size, fastener grade, and application load requirements. Torque specifications should be obtained from engineering standards or calculation methods defined in fastener design guidelines.

Installation Considerations

The sleeve should be positioned with the stepped sections engaging the corresponding component bores. The flange should seat against the workpiece surface to provide positive positioning. The internal thread should be aligned with the mating fastener for proper thread engagement. Torque application should follow specified tightening procedures.

Thread condition should be inspected before installation; damaged or contaminated threads may affect torque readings and assembly integrity. For plated or coated sleeves, coating thickness should be within specified tolerances to maintain fit with mating components. When used in suspension arm mounting applications, the sleeve should be positioned to ensure proper alignment of the bracket relative to the vehicle body member . Fasteners should be tensioned to manufacturer's recommended torque settings for the specific application.
