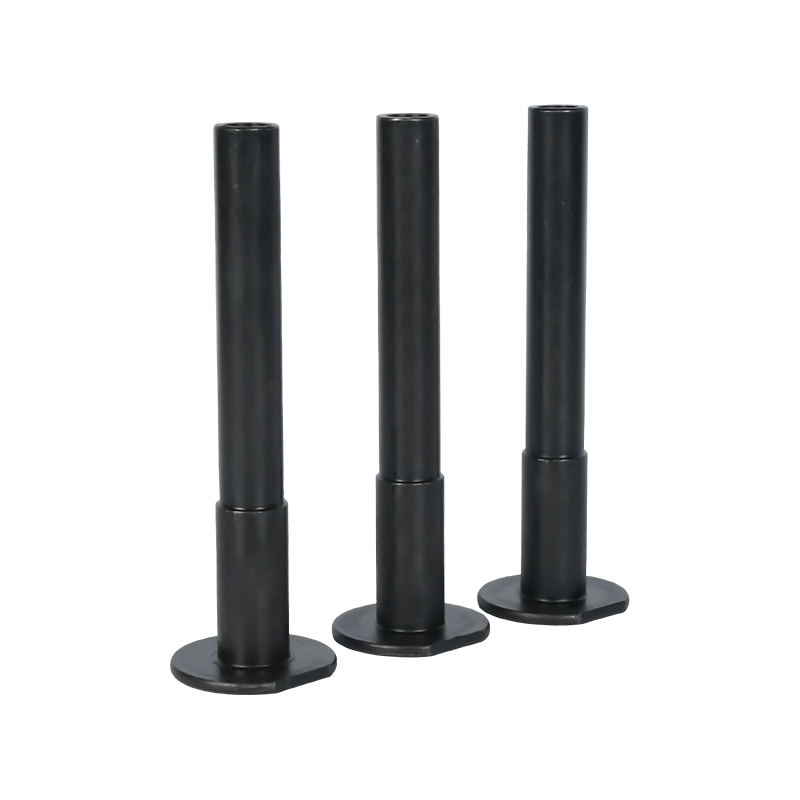

Black Carbon Steel Flanged Step Suspension Mounting Sleeve

Core Features

Stepped Outer Diameter Configuration – Multiple diameter sections along the sleeve length support defined engagement with mating component interfaces. The stepped profile provides alignment and positioning functions for assemblies with varying bore diameters across stacked components .

Integrated Flange – A circular flange is formed at one end of the sleeve, serving as a positive stop to control insertion depth and providing a load-bearing surface that distributes clamping force across the workpiece.

Central Through-Hole – The bore accommodates bolts, shafts, or mounting hardware for component attachment and alignment. The through-hole diameter is dimensioned to provide clearance or bearing fit based on application requirements.

Black Surface Treatment – The black finish provides a corrosion-resistant barrier layer with a uniform appearance. Low carbon steel with black oxide finish is a standard material configuration for flanged mounting sleeves .

Product Characteristics

The sleeve is manufactured with a stepped outer diameter profile, with each section dimensioned to engage specific mating components. The flange is formed at one end with specified diameter and thickness, providing a positive stop and bearing surface. The central through-hole is dimensioned to accommodate the specified bolt or shaft size.

Material composition is controlled to meet specified strength requirements. Low carbon steel with black oxide finish is a standard configuration for flanged sleeves . Carbon steel grades are available for general applications, with material selection affecting sleeve strength and wear resistance. Stainless steel and aluminum alloy options are available for corrosion-resistant or lightweight requirements .

The black oxide finish is applied through a chemical conversion process, producing a consistent black surface with defined corrosion resistance properties. Alternative surface treatments include electroless nickel plating and anodizing for aluminum versions .

Application Scenarios

Suspension and Mounting Systems – Applied in suspension assemblies where stepped sleeves support alignment and positioning between shock eyelets and frame mounting tabs. Step-bushing configurations slip into bearing assemblies or wear sleeves to accommodate specified mounting widths .

Shaft Support and Positioning – Used in linear motion assemblies where flanged sleeves assist with positioning and securing shafts. Additional sleeve thickness provides increased holding strength .

Frame and Structural Assembly – Employed in equipment frames where stepped sleeves provide defined engagement with multiple component bore diameters and the flange distributes load across structural members.

Automotive and Heavy Equipment – Utilized in chassis and suspension components where alignment of mounting interfaces is required and where the black oxide finish provides corrosion resistance for under-vehicle applications.

Customization Options

Specifications and configurations can be adjusted based on application requirements. Outer diameters at each step, flange diameter, through-hole diameter, and overall length are customizable according to application geometry. Material grades include carbon steel for general applications, stainless steel for corrosion-resistant requirements, and aluminum for lightweight applications . Surface treatments are selectable according to environmental exposure conditions, including black oxide, electroless nickel plating, and anodizing .

Frequently Asked Questions

Q: What is the purpose of the stepped configuration on this sleeve?
A: The stepped outer diameter provides alignment and positioning functions for assemblies with varying bore diameters across stacked components. Each step engages a specific component interface, supporting consistent assembly alignment .

Q: What is the difference between a step sleeve and a straight sleeve?
A: A step sleeve features multiple diameter sections along its length, supporting engagement with components having different bore diameters. A straight sleeve has a uniform outer diameter along its length.

Q: What materials are available for flanged step sleeves?
A: Material options include carbon steel (1018 grade), stainless steel (304 grade), and aluminum alloy (5056 grade). Material selection affects strength, corrosion resistance, and weight .

Q: What surface treatments are available?
A: Surface treatments include black oxide for carbon steel, electroless nickel plating for carbon steel, and clear or black anodizing for aluminum .

Q: Can these sleeves be supplied with mounting hardware?
A: Some configurations include hex socket set screws for securing the sleeve to the shaft or mounting surface .

Installation Considerations

The sleeve should be positioned with the stepped sections engaging the corresponding component bores. The flange should seat against the workpiece surface to provide positive positioning. The central through-hole should be aligned with the mating fastener or shaft. For applications using set screws, torque should be applied according to the specified tightening procedure. Thread condition of set screw holes should be inspected before installation. For plated or coated sleeves, coating thickness should be within specified tolerances to maintain fit with mating components. When used in suspension or mounting assemblies, the step sleeve width should match the specified mounting distance between frame tabs or brackets .
