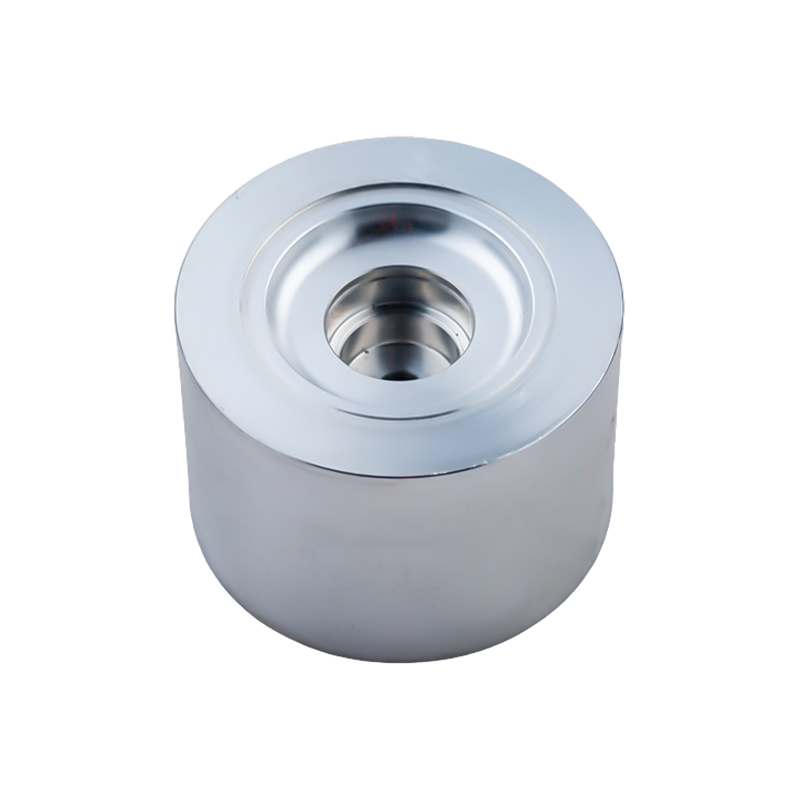

Cylindrical Bushing With Multi-Step Inner Hole

Core Features

Multi-Step Inner Hole Configuration – The internal bore incorporates two or more stepped diameters along the bushing length, accommodating shafts of different sizes or providing internal locating shoulders for component positioning within the bore.

Cylindrical Outer Profile – The bushing features a consistent outer diameter along its length, supporting installation into mounting fixtures, housings, or machine tool components. Flange configurations may be incorporated for axial retention .

Bearing and Guiding Function – The bushing provides a bearing surface for shafts, pins, or rotating components, with the bore dimensions maintained to specified tolerances for fit and guiding accuracy.

Carbon Steel Construction – Manufactured from carbon steel grades with material composition controlled to meet specified strength and wear resistance requirements.

Product Characteristics

The bushing is manufactured with a cylindrical outer body and an internal bore featuring multiple stepped diameters. Each bore step is dimensioned to accommodate specific shaft sizes or to provide locating surfaces within the bore. The outer diameter is maintained with consistent dimensions along the bushing length for fit with the mounting fixture or housing. The bushing may be configured with a radially extending flange for axial retention within the mounting assembly . The flange provides a positive locating feature and may incorporate stepped areas for engagement with retaining systems .

Material composition is controlled to meet specified strength and wear resistance requirements. Carbon steel grades are available for general applications. Heat treatment processes may be applied to achieve defined hardness for wear resistance. The multi-step bore design provides internal locating features that eliminate the need for separate components in assemblies requiring multiple internal diameters.

Surface treatment options include zinc plating, black oxide, phosphate coating, and other finishes based on application requirements.

Application Scenarios

Machine Tool Guide Bushings – Used in drilling, reaming, and milling operations where the bushing locates and guides the cutting tool into the workpiece. The stepped bore may accommodate different tool diameters .

Shaft Support and Bearing Applications – Applied where rotating or reciprocating shafts require support at multiple diameters within a single bushing. The stepped bore provides internal locating shoulders for shaft positioning.

Fixture and Jig Assembly – Employed in assembly fixtures and jigs where the bushing provides guiding or locating functions for pins, shafts, or tools.

Automotive and Machinery – Used in transmission and powertrain components where stepped bore bushings provide bearing surfaces for shafts.

Customization Options

Specifications and configurations can be adjusted based on application requirements. Each step diameter, step length, outer diameter, and overall length are customizable. Material grades include carbon steel for general applications, alloy steel for enhanced strength and wear resistance, and bearing bronze for friction-reducing applications. Surface treatments are selectable according to environmental exposure conditions, including zinc plating, black oxide, and phosphate coating.

Frequently Asked Questions

Q: What is the purpose of the multi-step inner hole configuration?
A: The multi-step inner hole accommodates shafts of different diameters along the bushing length or provides internal locating shoulders for component positioning within the bore, eliminating the need for separate stepped components.

Q: What is the typical tolerance for bushing bore diameters?
A: Bore diameters are typically maintained to standard tolerance classes such as H7 for clearance fits or other specified tolerance grades based on the application requirements.

Q: What materials are available for cylindrical bushings?
A: Material grades include carbon steel for general applications, alloy steel for enhanced strength, bearing bronze for friction-reducing applications, and other materials based on application requirements.

Q: What surface treatments are available?
A: Surface treatments include zinc plating, black oxide, phosphate coating, and other options based on environmental exposure conditions.

Q: Are these bushings suitable for high-wear applications?
A: Yes. The bushing can be heat-treated to achieve defined hardness levels for wear resistance. Material selection and surface treatment should be based on the specific wear conditions.

Installation Considerations

The bushing should be installed into the mounting fixture or housing with the outer diameter providing the specified fit. The stepped inner bores should align with the corresponding shaft diameters or components. For flange configurations, the flange provides axial positioning and may engage with retention systems . The bushing may require a retainer mechanism with features that engage the flange and provide axial retention . For applications involving rotating tools, the bushing system should provide retention force to prevent axial disengagement during tool withdrawal .
